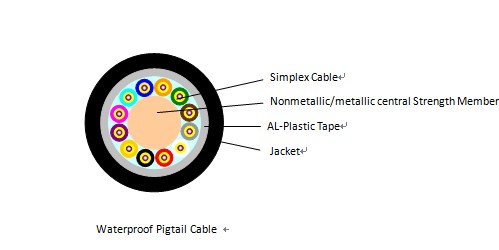

Waterproof Pigtail Cable

Description
Used in pigtail and patah cords;
Used in optical connections in optical communication equipment rooms and optical distribution frames;
Used in indoor cabling.

Characteristics
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Easy to splice and convenient laying, and with big capacity data transmission;
Meet various requirements of market and clients.



Cable Parameters
Fiber
Count		 Cable Dimension
（mm）		 Cable Weight
（kg/km）		 Tensile
（N）		 Crush
（N/100mm）		 Min. Bend Radius
（mm）		 Range of Temperature
（℃）
Long Term Short Term Long Term Short Term Dynamic Static
2 8.7 52 130 440 200 1000 20D 10D -20～+60
4 8.7 60 130 440 200 1000
6 10.0 81 130 440 200 1000
8 11.7 108 130 440 200 1000
10 13.3 134 130 440 200 1000
12 15.0 183 130 440 200 1000
Note:
1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplez cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;
4. The minimum bend radius (static) is 5D when G657 fiber is used.

Options
Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi –mode cable, or other types of fiber;
Fiber Count: The total number of fibers in the cable;
Jacket Material: High density polyethylene (HDPE), environmental flame-retardant polyvinyl chloride (PVC), environmental low smoke zero halogen flame retardant polyolefin (LSZH), environmental thermoplastic polyurethane (TPU), or other contracted material;
Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special request
