GYXTW

Description

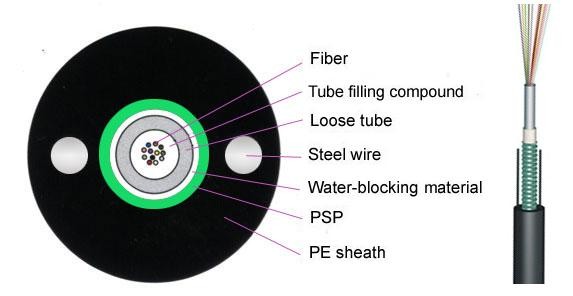

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking materialis applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath。

Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Long delivery length

Cable Parameters


Fiber Count Cable Dimension
（mm）		 Cable Weight
（kg/km）		 Tensile
（N）		 Crush
（N/100mm）		 Min. Bend Radius
（mm）		 Range of Temperature
（℃）
Long Term Short Term Long Term Short Term Dynamic Static
2 8.3 78 600 1500 300 1000 20D 10D -40～+60
4 8.3 78 600 1500 300 1000
6 8.3 78 600 1500 300 1000
8 8.3 78 600 1500 300 1000
12 8.3 78 600 1500 300 1000
Note:
1 All the values in the table, which are for reference only, are subject to change without notice;
2 The minimum bend radius (static) is 5H when G657 fiber is used.

Options
Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests
