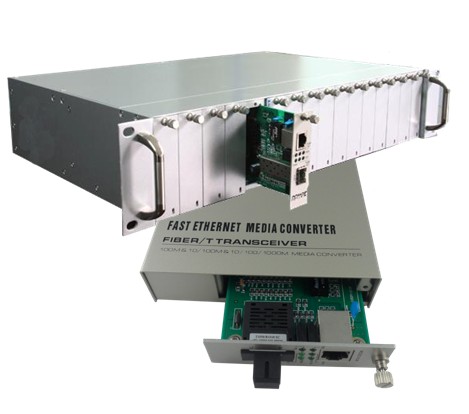

10/100M Media Converter Card

APPLICATION
1.Apply to ready to rise to 10M extended enterprise network bandwidth 100M.
2.Apply to images, voice and other multimedia data on an integrated transport network point.
3.Applies to the computer signal transmission in need of the occasion widely used for computer data transmission network to meet a variety of business needs.
4.Apply to the campus broadband network, broadcasting network and intelligent residential broadband fiber-to-floor fiber to the home data transfer with the switches and other computer network equipment can be combined to form:-chain, star, ring-type network and other computer networks.


TECHINCAL SPECIFICATIONS
Standard Protocol IEEE802.3
IEEE802.3u
10/100Base-TX
100Base-FX
Transmission speed 10M/100M auto-negotiation
Transmission mode Full-duplex and semi duplex(auto-negotiation)
Conversion mode Media conversion,storage transmission,direct transmission
Interface UTP: RJ-45 Fiber connector: SC/ST/FC
Twisted-pair Cat5 UTP cable (the max distance up to 100m)
Fiber Cable 8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km)
50/125, 62. 5/125μm(the max distance up to 2km or 5km)
Wavelength Multi Mode: 850nm Single Mode: 1310/1550nm
Conversion mode Media conversion,storage transmission,direct transmission
MAC address 1K
Buffer space 288KB
Packet length Storage transmission:2046Bytes,straight-through,infinite.
Time-delay 9.6us
Bit error rate <1/1000000000
MTBF 80,000 hours
Power supply AC100~250V on media converter rack mounts
Power dissipation <2.5W
Operating temperature 0~50 Celsius degree
Storage temperature -20~70 Celsius degree
Humidity 5%~90%  (no condensation)
Dimensions(mm) 115 * 77 * 26mm (L*W*H)(card without metal box)
