optical fiber distribution cabinet

1,Information
Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room.The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.Provide fusion and storage appliance for optical cables.Reliable protection appliance of fixing, stripping and earthing for optical cables.Whole range protected design for fiber lay to ensure the bending radius ≥40mm.Provide various accessories to avoid any unexpected damage to the fiber.

























2,Order guide
Type （mm） Dimension Max Capacity (cores) Remark

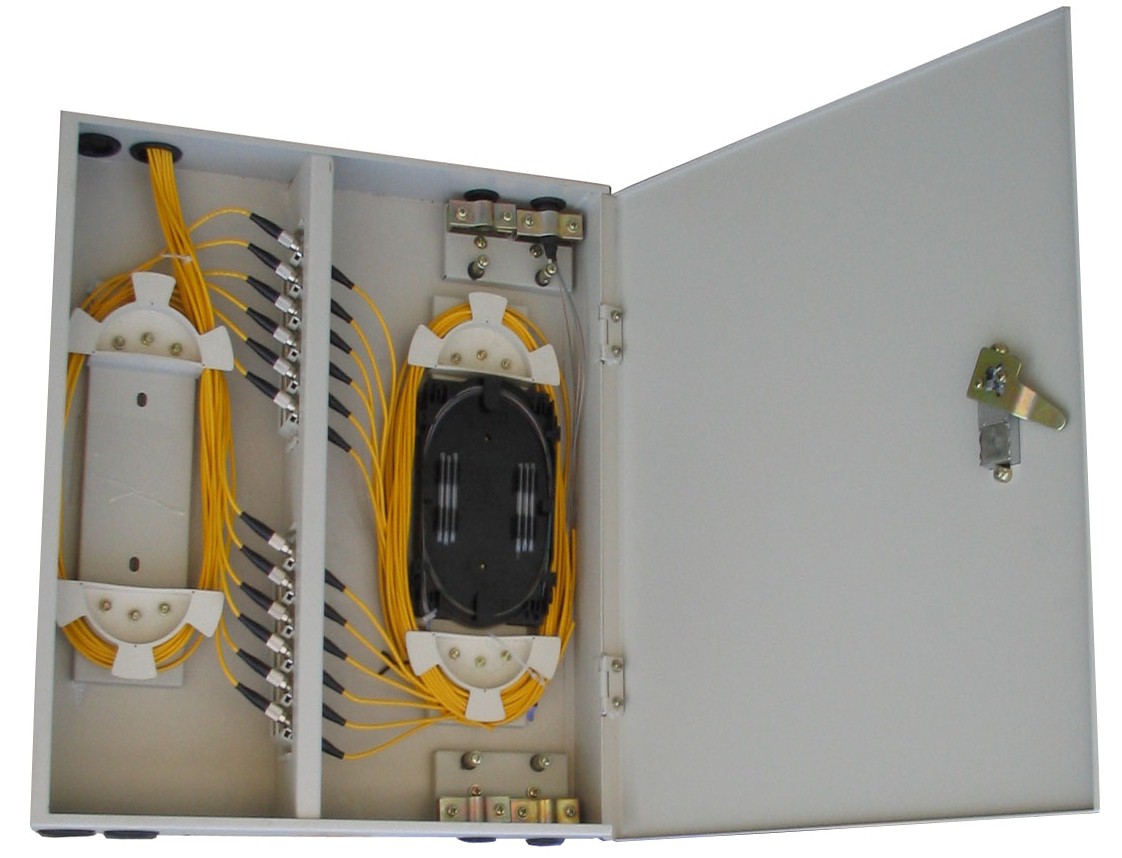

CT-A 455*405*80 24 The case body is made of cold rolled steel sheet, electrostatic spraying ,outdoor wall mouting, provide 24-72 adaptors, available for FCSCSTLC
455*405*120 48
455*405*150 72

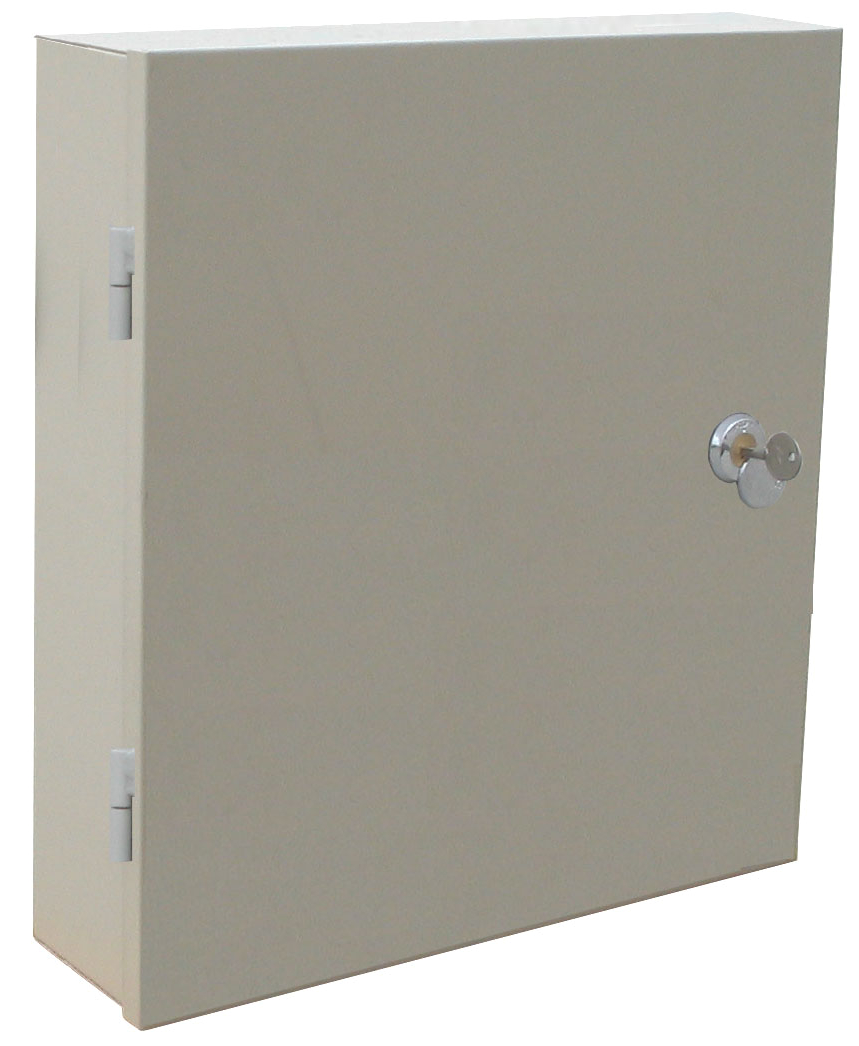

CT-B 455*405*120 48 The case body is made of stainless steel, electrostatic spraying, outdoor wall mouting, provide 48-72 adaptors, available for FCSCSTLC
455*405*150 72

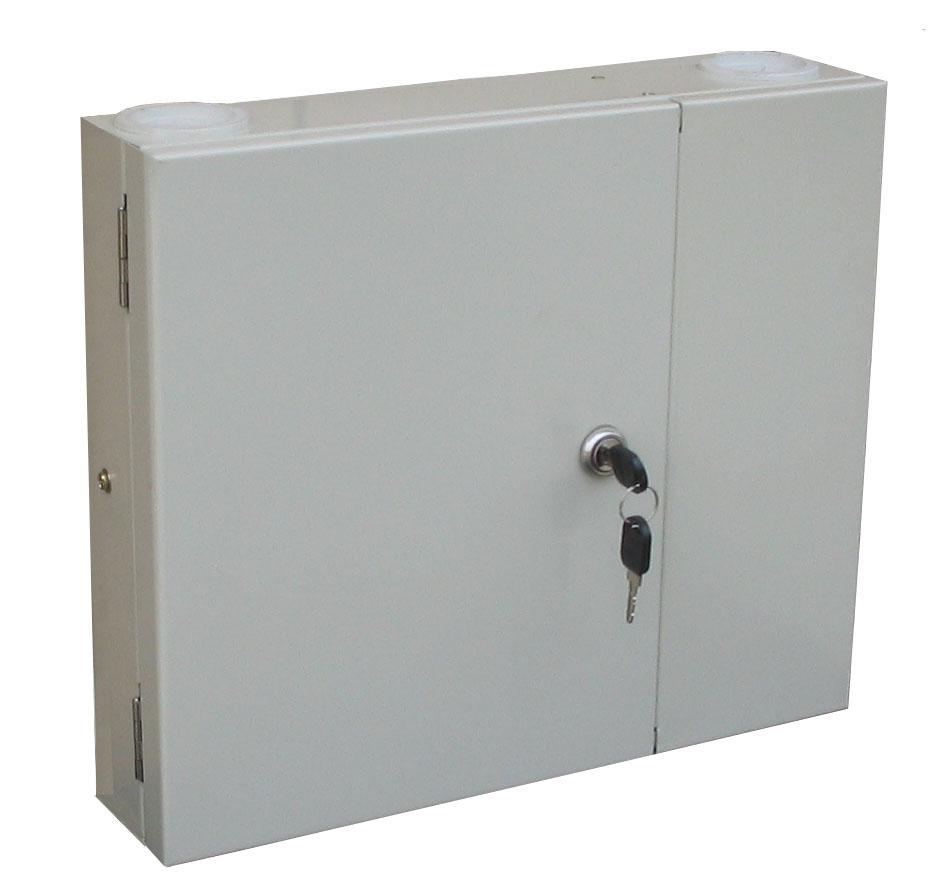

CT-C 350*350*80 24 The case body is made of cold rolled steel sheet, electrostatic spraying, outdoor wall mouting, provide 12-24 adaptors, available for FCSCSTLC
CT-D 350*300*80
 		 12
24
