Indoor Cables

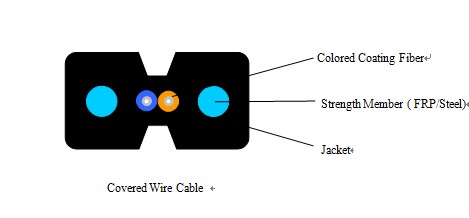

Covered Wire Cable

Used as access building cable;
Used in indoor cabling, especially used for FTTH.
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.

Cable Parameters
Fiber Count Cable Dimension
Cable Weight
Min. Bend Radius
Range of Temperature
Long Term Short Term Long Term Short Term Dynamic Static
1~2 3.1×2.0 8.2 60 / 100 100 / 200 500 / 1000 1000 / 2200 20H 10 H -20~+60
1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable core use the colored coating fiber of 250μm;
3. H is height of the flat cable;
4. The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used;
5. The minimum bend radius (static) is 5H when G657 fiber is used.
