Fiber Optic Splice Closure

Horizontal Fiber Optic Splice Closure

The Fiber Optic Splice Closure : aerial, underground, pipeline, handhole. The ambient temperature ranges from -40 to 65℃.

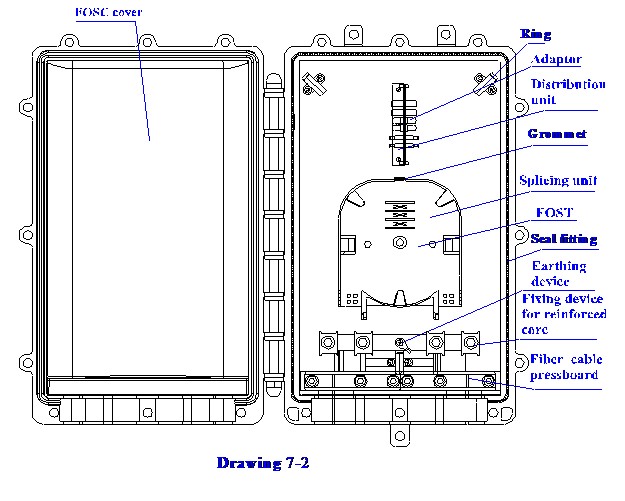

2. Basic structure and configuration
Outside dimension (LxWxH) 323x202x86 (mm)
Weight (excluding outside box) 2650g – 2800g
Number of inlet/outlet ports 3 (pieces) on each side
Diameter of fiber cable Φ8—Φ20 (mm)
Capacity of FOSC Bunchy: 12—120 (Cores)
No. Name of components Quantity Usage Remarks
1 Housing 1 set Protecting fiber cable splices in whole Internal diameter:
2 Fiber optic splice tray
Max 8 pieces (bunchy) Fixing heat shrinkable protective sleeve and holding fibers Suitable for:
Bunchy: 12,24, (cores)
3 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom
4 Port plug 6 pieces Sealing empty ports
6 Pressure
testing valve
1 set After injecting air, it is used for pressure testing and sealing testing Configuration as per requirement
7 Earthing deriving device 1 set Deriving metallic components of fiber cable in FOSC for earthing connection Configuration as per requirement
