optical fiber terminal box


1,Informaitons
Optical fiber terminal box can be applied in the straight through or branch connection of indoor optical fiber cable, available for the distribution and terminal connection of various kinds of optical fiber system. Fit for wall mounting.

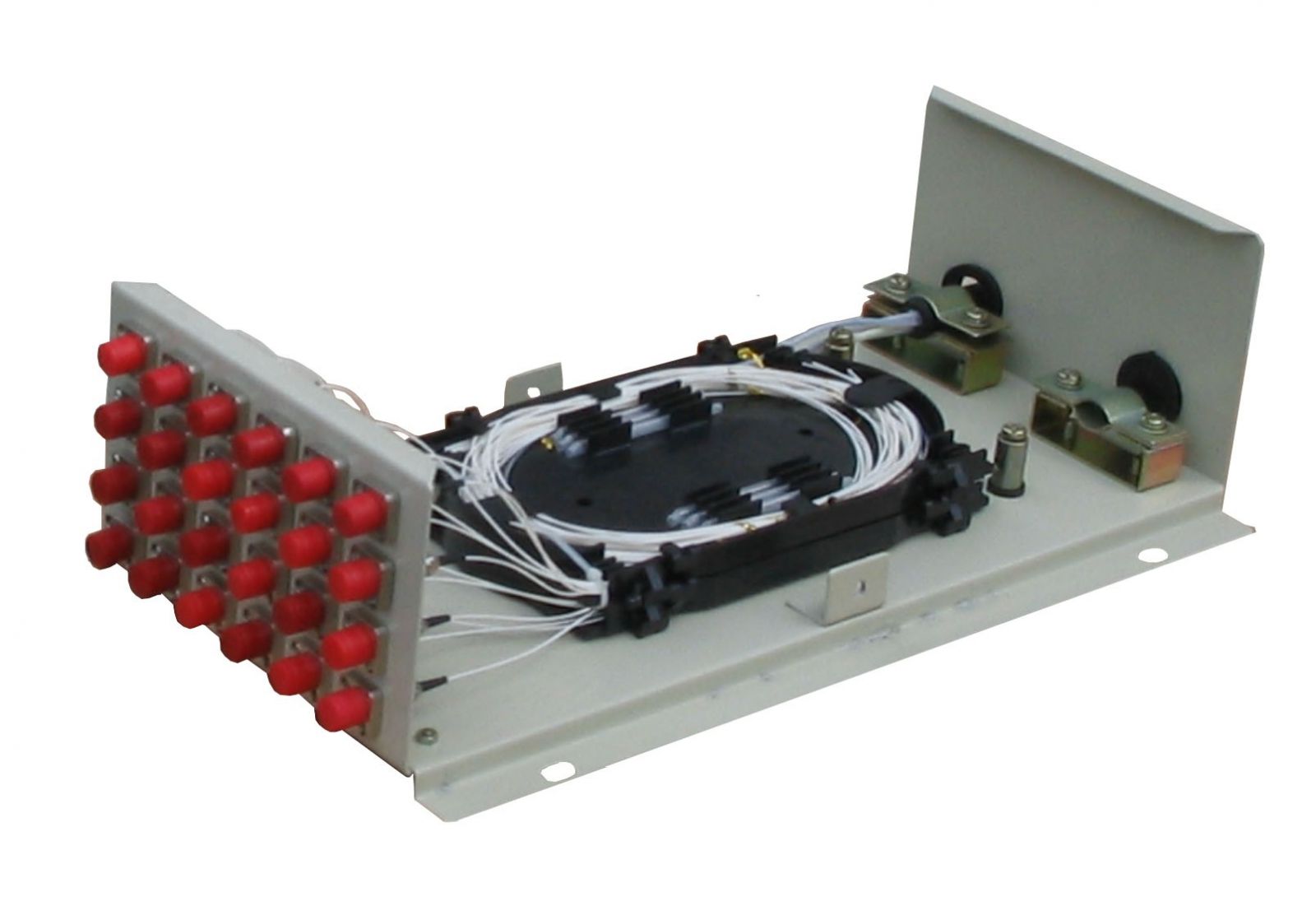

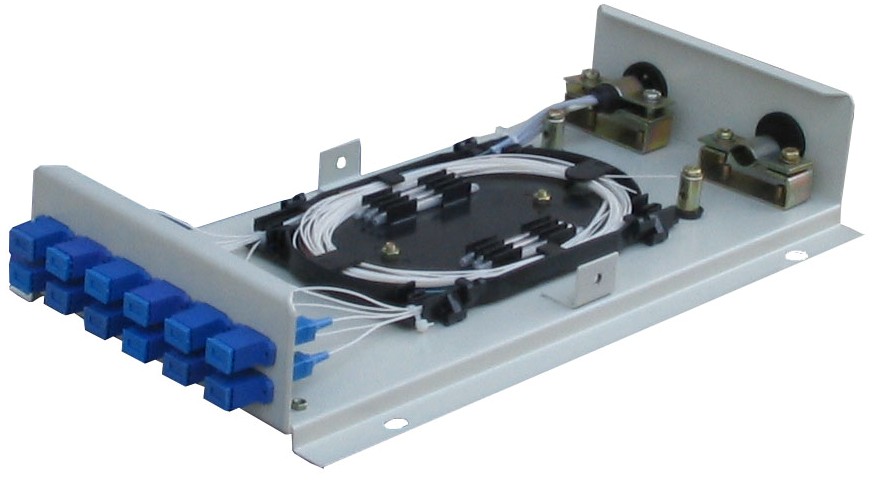

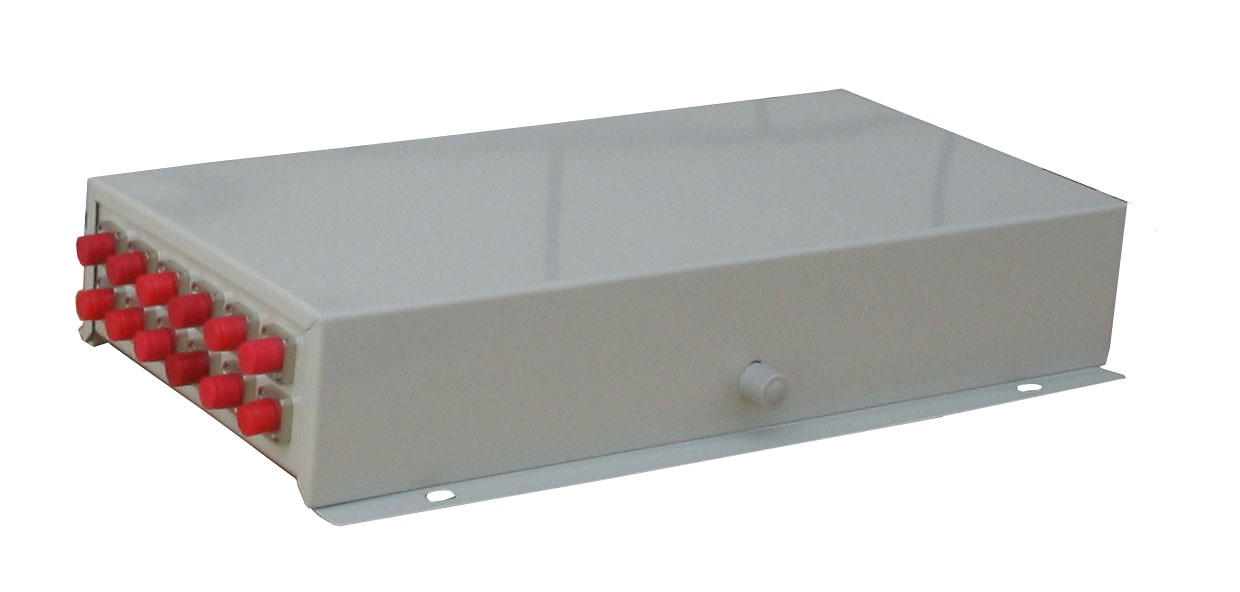

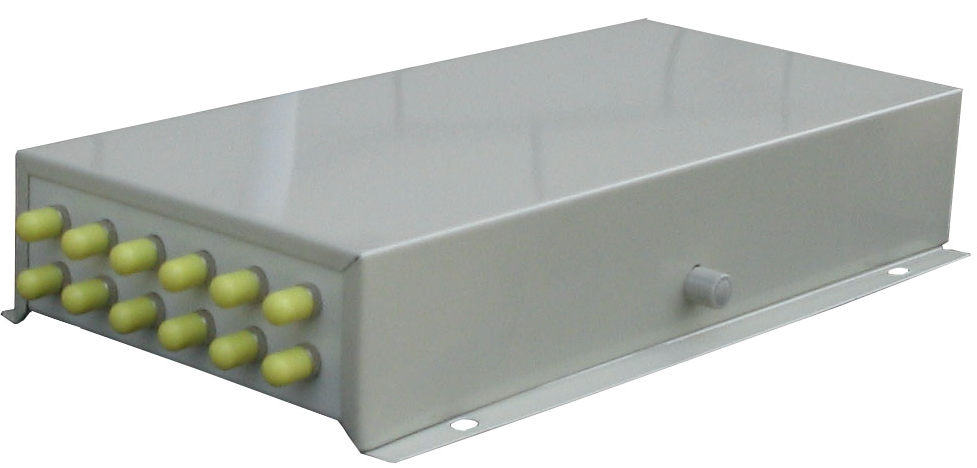

2,Adaptor outlet (FC12/ST12/SC12)

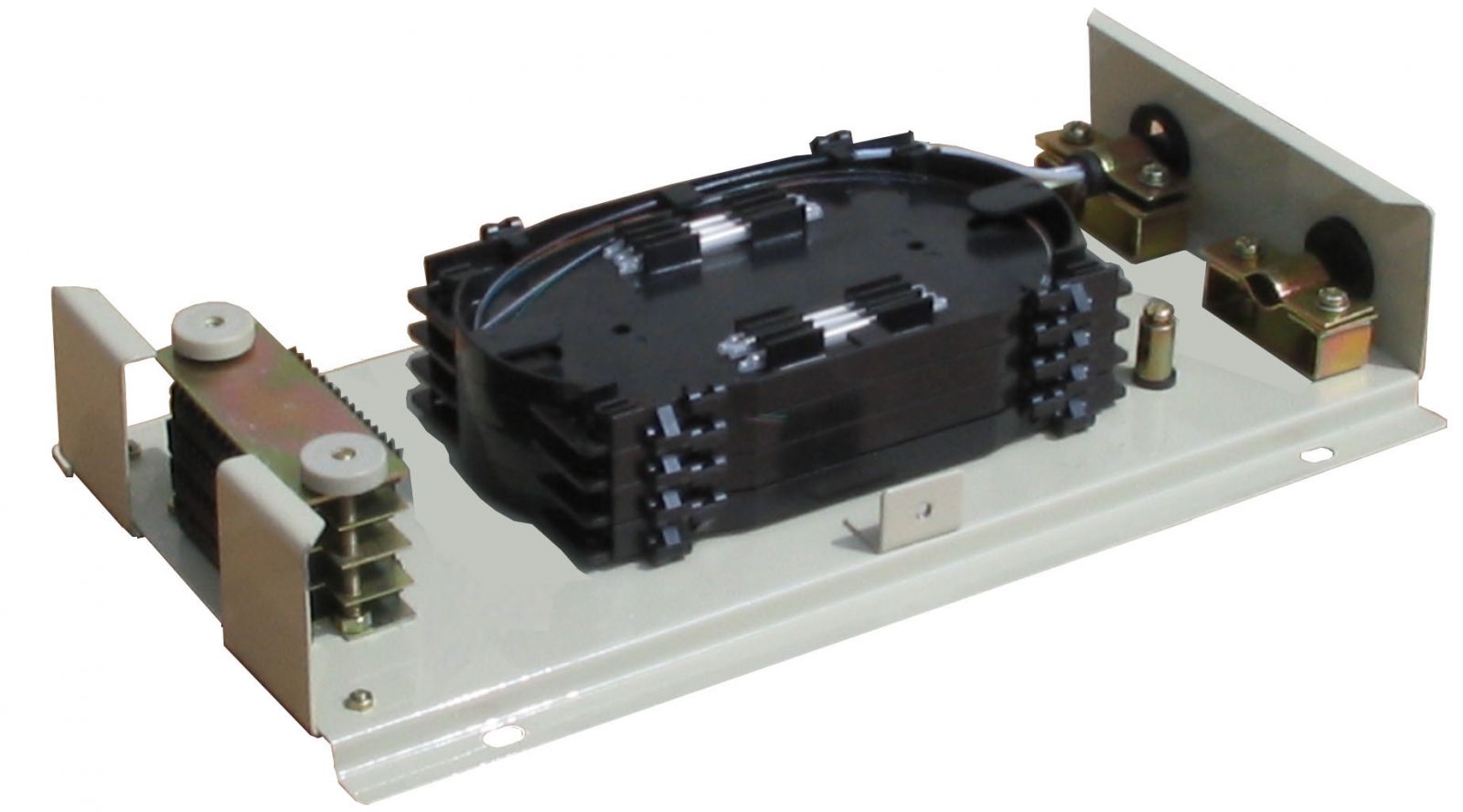

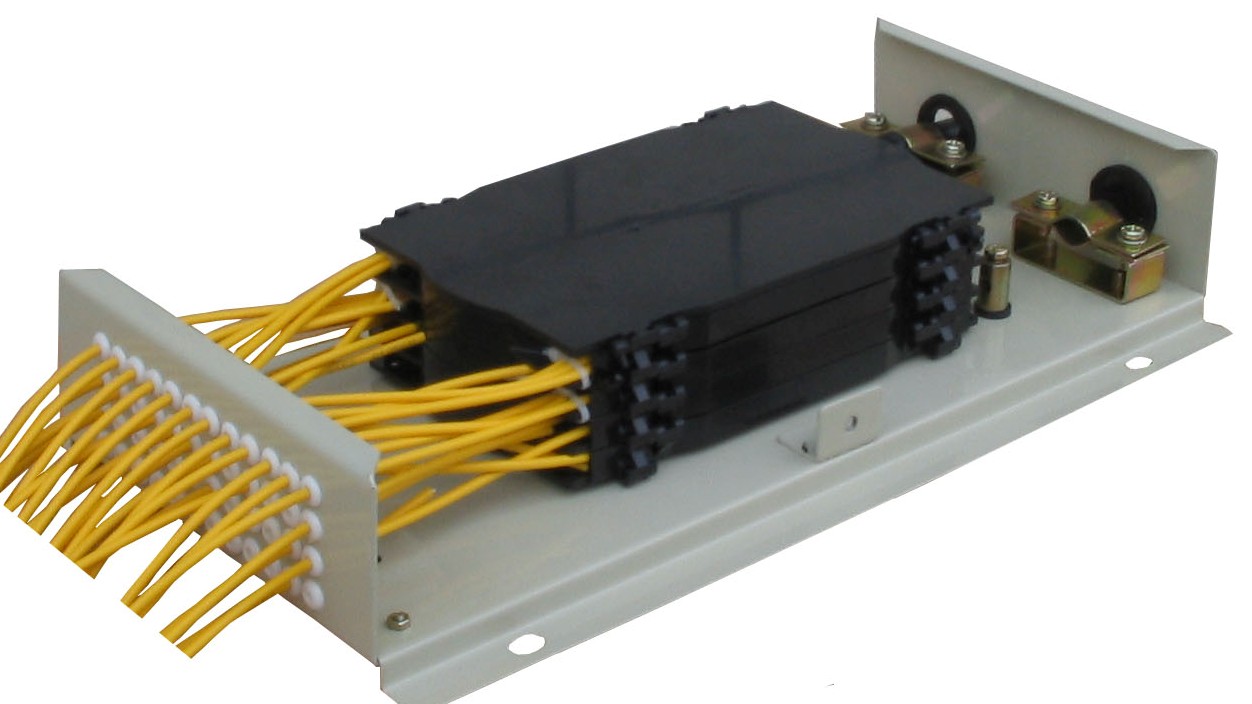

3,Fiber pigtail outlet:(CT-48 ,CT-24)























4,Order guide

Type		 （mm） Dimension
Max Capacity (cores)
Remark
CT-FC12 330*183*70 12
The body is made from cold rolled steel plate, the surface use the technique of electrostatic spraying, 12 outlets for adaptors, available for FC,ST, SC adaptors.
CT-SC12 330*183*70 12
CT-ST12 330*183*70 12
CT-FC24 330*183*100 24
CT-48 330*183*70 48
The body is made from cold rolled steel plate, the surface use the technique of electrostatic spraying, fiber pigtail outlet
CT-24 300*120*46 24
