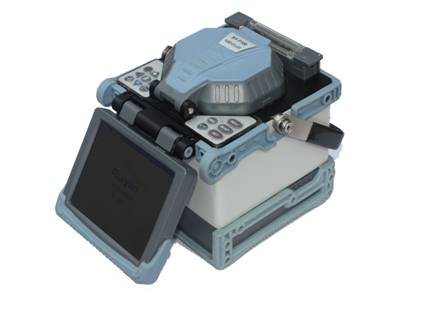

Fusion Splicer

Key Features
Digital fusion splicer with automatic focus function
Fiber core can be display clearly
Single X or Y view and X & Y view simultaneously
Auto detect cleaved endface fault
Display fiber cleaved and offset angle
Display core and clad offset
5.6 inch TFT color LCD monitor with clear digital image display
USB & VGA interface
Software upgrade via USB interface




Specifications
Model RY-F600
Applicable fibers SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Fiber cleaved length 10 ~16mm (Coating diameter<250µm);16mm(Coating diameter250~1000µm)
Fiber diameter Cladding diameter:80 ~150µm , Coating diameter:100 ~1000µm
Auto focusing Available
Fiber aligning method Core aligning, clad aligning, manual aligning
Average splice loss 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS)
Splicing time Typical 9 sec,with standard SM fiber
Heating time Typical 36 sec
Applicable sleeves 60mm, 40mm and a series of micro sleeves
Tension test 2N(option)
Electrode life 5000
Battery capacity Typical 400 cycles (splice and heat)
Monitor 5.1 inch TFT color monitor
Terminal USB 1.1 and VGA ,   software upgrade via USB interface
Operating condition 0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50oCC, respectively, Max. wind velocity of 15m/s
Splicing mode Auto ,normal
Fiber cleaved angle threshold set 0.1 ~ 10.0 oC , 0.1oCstep
Power supply Li-battery 11.8V  , AC100-240V  DC12.6V/5.0A
Dimension L169*W152*H155mm
weight 2.4kg   2.9kg(battery)
