Generals

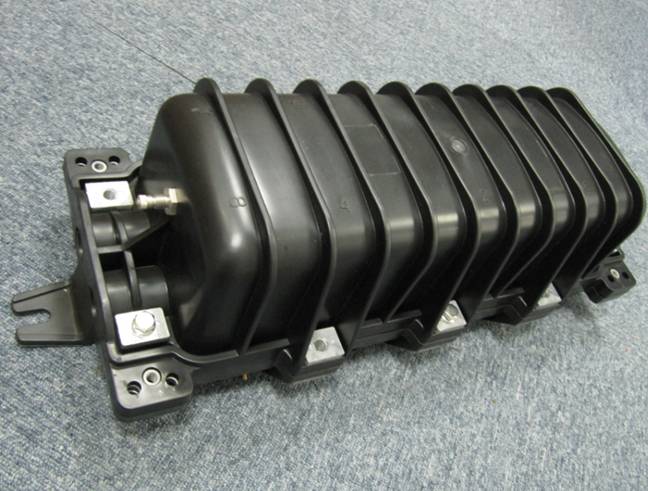

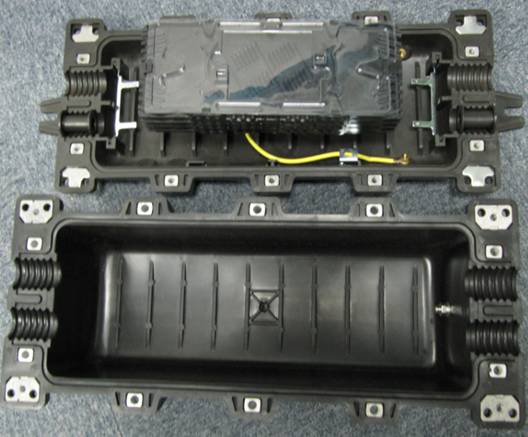

CT-01 Optic Fiber Closures can be used in outside plant, underground, aerial, pedestal and direct buried applications. The device allows for direct jointing and bifurcated jointing. It also protects fiber optic splices from the elements while providing fast and easy no-cost reentry. It is tested under real-world conditions, that stands up to even the most severe conditions of moisture, vibration and extreme temperatures.

Features
• Reasonable structure design and constructed of a high performance chemical-resistant raw material, PP+GF20%
• Reliable optical and resist electric performance
• Innovative waterproof elastic entire sealing
• Unique strength member clamp assembly
• Several sizes with interchangeable parts
• Multiple cable entry options
• No special tools required  Varying cable port sizes

Benefits
• Use in outside plant, underground, aerial, pedestal and direct buried applications
• Prevents cable sheath movement with temperature changes
• Expandable system to fit capacity and space requirements
• No compound required; easy installation and reentry; easy reentry and reusable seal
• Accommodates all common trunk, feeder cable sizes, and many types of splices
• Eliminates splice rebuilding when adding lines
• Provides flexibility in fiber management and easy to maintain
• Meets fire codes and industry standards
• Protects fiber optic splices from the elements while providing fast and easy no-cost reentry.
• Provides ability to flash test

Specification


Type	Appearance size L×W×H (mm)	Fibers/Tray	Cable Capacity (port)	Splice capacity (fibers)	Suitable Dia of cable (mm)	Weight/Unit (kg)
CT-L01	660×220×197	12	2 entry 2 exit	12-144	Φ10~Φ25	5.4-6.2
