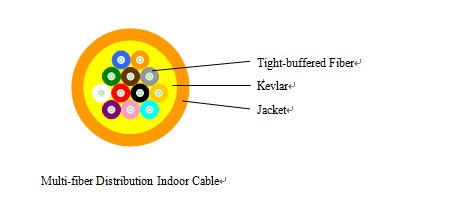

Multi-fiber Distribution Indoor Cable

Applications
Used in indoor cabling, especially used as distribution cable;
Used as interconnect lines of equipments, and used in optical connections in optical communication equipment rooms and distribution frames;
Used in pigtails and patch cords.

Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics meet the requirements of relevant standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.



Cable Parameters
Fiber Count Cable Dimension
（mm）		 Cable Weight
（kg/km）		 Tensile
（N）		 Crush
（N/100mm）		 Min. Bend Radius
（mm）		 Range of Temperature
（℃）
Long Term Short Term Long Term Short Term Dynamic Static
2 3.0 7.8 100 200 200 1000 20D 10D -20～+60
4 5.0 17 100 200 200 1000
6 5.2 21 100 200 200 1000
8 5.5 28 130 440 200 1000
12 6.5 36 200 660 200 1000
16 7.5 44 200 660 200 1000
24 8.2 60 200 1000 200 1000
48 12.5 130 300 1000 200 1000
Note:
1. All the values provided in the table, which are for your reference, are subject to change without notice;
2. The cable dimension and weight are in accordance with tight-buffered fiber withφ0.9mm outer diameter;
3. D is outer diameter of the round cable;
4. The minimum bend radius (static) is 5D when G.657 fiber is used.
