1.25Gb/s CWDM SFP Transceiver

Product FeaturesProduct Features
Up to 1.25Gb/s data links
Duplex LC connector
Hot-pluggable SFP footprint
Uncooled DFB laser transmitter
in 18 possible CWDM wavelengths
RoHS compliant and Lead Free
Up to 80km on 9/125um SMF
Metal enclosure for lower EMI
Single +3.3V power supply
Low power dissipation <800mW
Commercial operating temperature
SFP MSA SFF-8074i Compliant

Applications
Gigabit Ethernet
1x Fibre Channel

General

CABLETO’s  CTSCxx123xxL80 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.063Gbps and 80km transmission distance with SMF. They are RoHS compliant and lead-free.


Product Selection
Product Selection
Part Number Operating temperature DDMI
CTSCxx123CXL80 Commercial No
CTSCxx123CDL80 Commercial Yes

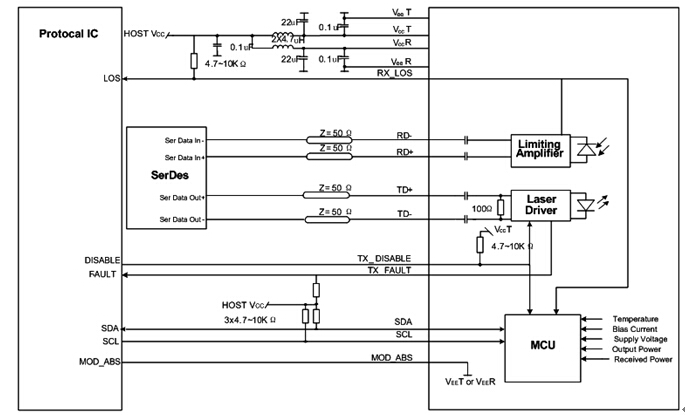

Recommend Circuit Schematic





Absolute Maximum Ratings

Parameter Symbol Min Typ Max Unit Ref.
Maximum Supply Voltage Vcc -0.5 - +4.0 V
Storage Temperature TS -40 - +85 °C
Operating Humidity RH 5 - 95 %

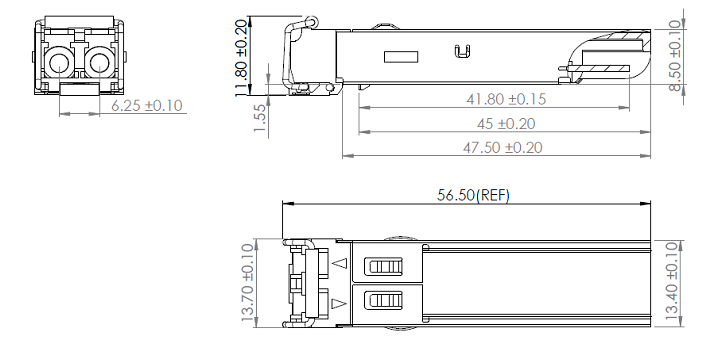

Mechanical Specifications
CABLETO's Small Form Factor Pluggable (SFP) transceivers are compatible with the dimensions defined by the SFP Multi-Sourcing Agreement (MSA).




                                                     CTSCxx123xxL80
