Indoor Cables

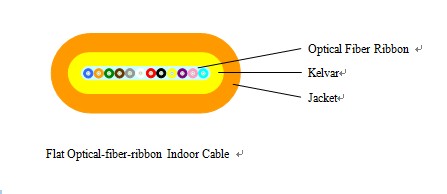

Flat Optical fiber ribbon Indoor Cable

Used in indoor cabling, especially used in good laying conditions;
Used in optical connections in optical communication equipment rooms and optical distribution frames, optical apparatus and equipments;
Used in pigtails and patch cords;
Used as access building cable.
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.

Cable Parameters
Fiber Count Cable Dimension
Cable Weight
Min. Bend Radius
Range of Temperature
Long Term Short Term Long Term Short Term Dynamic Static
2 2.5×3.5 10 80 200 200 500 20H 10H -20~+60
4 2.5×3.5 10 80 200 200 500
6 2.5×4.0 11 80 200 200 500
8 2.5×4.5 13 80 200 200 500
12 2.5×5.0 15 80 200 200 500
1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension in the tahle, which are according to single ribbon, are subject to change with the ribbon count;
3. H is height of the flat cable;
4. The minimum bend radius (static) is 5H when G657 fiber is used.
