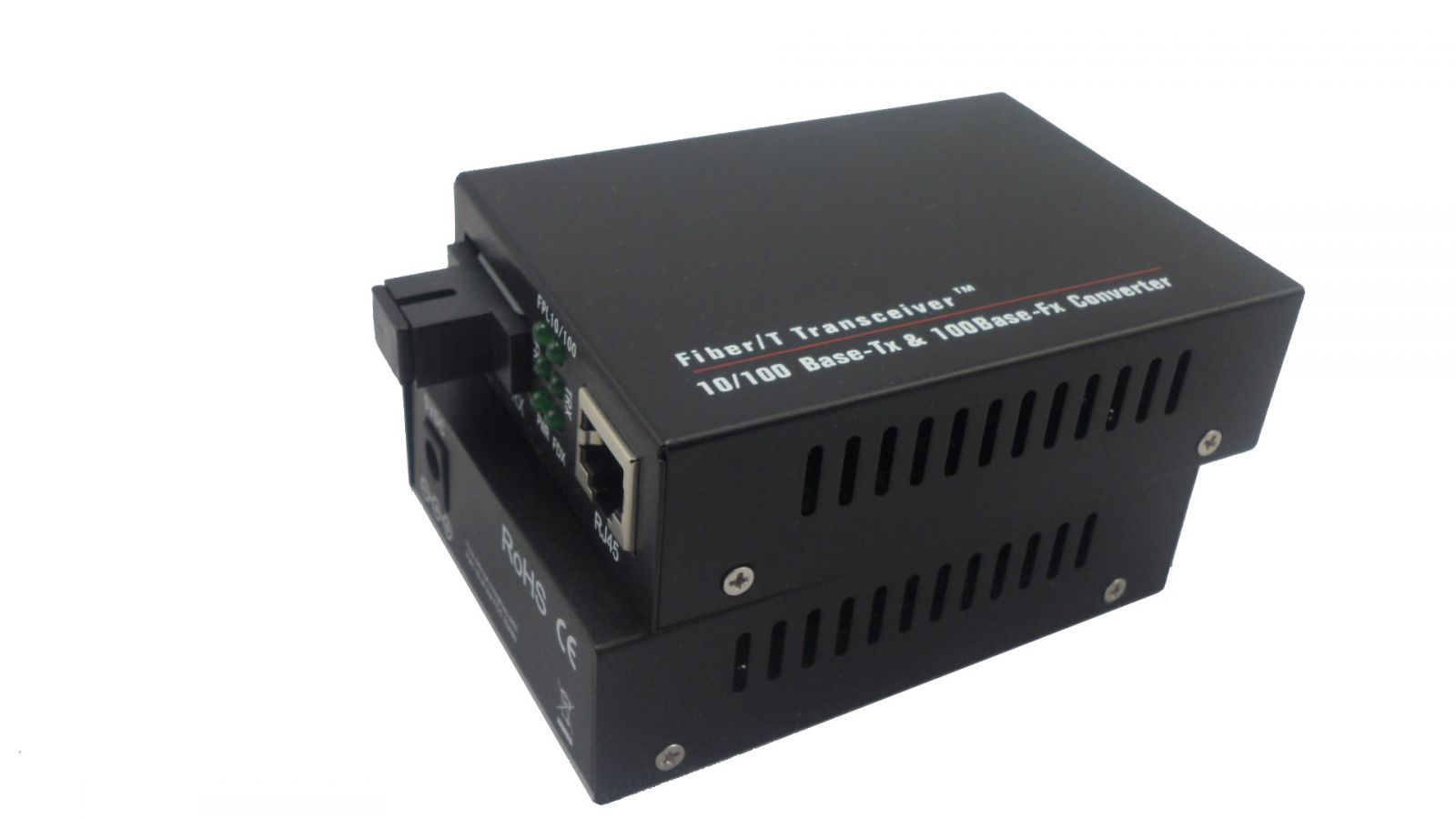

10/100 Mpbs Single Fiber Media Converter

1.Apply to ready to rise to 10M extended enterprise network bandwidth 100M.
2.Apply to images, voice and other multimedia data on an integrated transport network point.
3.Applies to the computer signal transmission in need of the occasion widely used for computer data transmission network to meet a variety of business needs.
4.Apply to the campus broadband network, broadcasting network and intelligent residential broadband fiber-to-floor fiber to the home data transfer with the switches and other computer network
equipment can be combined to form:-chain, star, ring-type network and other computer networks.

Standard Protocol IEEE802.3 10 Base-T standard
IEEE802.3u 10/100Base-TX/FX standard
IEEE 802.3d standard.
IEEE 802.3Q standard.
Band Width RJ 45 Port: 10/100Mbps Optical Port: 155Mbps
Operation Mode Full /Half duplex mode
Connectors UTP:  RJ-45 Fiber connector: SC/ST/FC
Operation Mode Full /Half duplex mode
LED Indicators POWER, FPL,10/100, FRX, TRX , FDX.
Power Supply External DC-48V,DC24V,DC12V,DC5V
Internal AC110-250V/50Hz
DC -32~-72V
Power Consumption ≤5W
Environmental Parameters Work Temperature 0℃~50℃ (32 °F ~ 122 °F )
Storage Temperature -40℃~70℃ (-40 °F ~ 158 °F )
Humidity 5%~90% non-condensing
TP Cable Cat5 UTP cable (the max distance up to 100m)
Fiber Cable 8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km)
50/125, 62. 5/125μm(the max distance up to 2km or 5km)
MTBF (Hours) >50000
Dimensions(mm) External power supply 94mm*70mm*25mm  (3.7 *2.8*0.98 inch)
Internal power supply 140mm*110mm*30mm (5.5 *4.3 *1.2 inch)
Socket Card 157mm*128mm*31mm (6.2 *5.1 *1.2 inch)
Gross Weight External power supply 0.4 kg
Internal power supply 0.8kg
Socket Card 1.0kg
Emission/Safety FCC Part 15 , Class A, RoHS and CE Mark
