Fiber Optic Splice Closure

Dome Heat Shrinkable Seal FOSC


The Fiber Optic Splice Closure :
aerial, underground, wall mounting,
handhole mounting and duct mounting.
The ambient temperature ranges from -40℃ to +65℃.

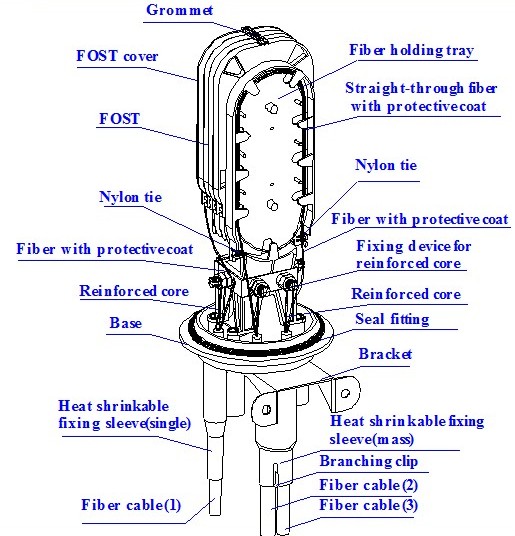

2. Basic structure and configuration
Outside dimension (Height x Diameter) 500mm×228mm
Weight (excluding outside box) 3100 g— 3930g
Number of inlet/out ports 5--14pieces
Diameter of fiber cable Φ8mm~Φ42mm
Capacity of FOSC Bunchy: 12-192(cores), Ribbon: up to 576 (cores)
No. Name of components Quantity Usage Remarks
1 FOSC cover 1 piece Protecting fiber cable splices in whole Height x Diameter
400mm x 178mm
2 Fiber optic splice tray (FOST) Max. 12trays (bunchy)
Max. 8trays (ribbon)
Fixing heat shrinkable protective sleeve and holding fibers Suitable for: Bunchy:12,24,(cores), Ribbon:6(pieces)
3 Fiber holding tray 1 pcs Holding fiber with protective coat
4 Base 1set Fixing internal and external structure
5 Plastic hoop 1 set Fixing between FOSC cover and base
6 Seal fitting 1 piece Sealing between FOSC cover and base
7 Pressure testing valve 1 set After inject air, it is used for pressure testing and sealing testing Configuration as per requirement
8 Earthing deriving device 1 set Deriving metallic parts of fiber cables in FOSC for earthing connection Configuration as per requirement
