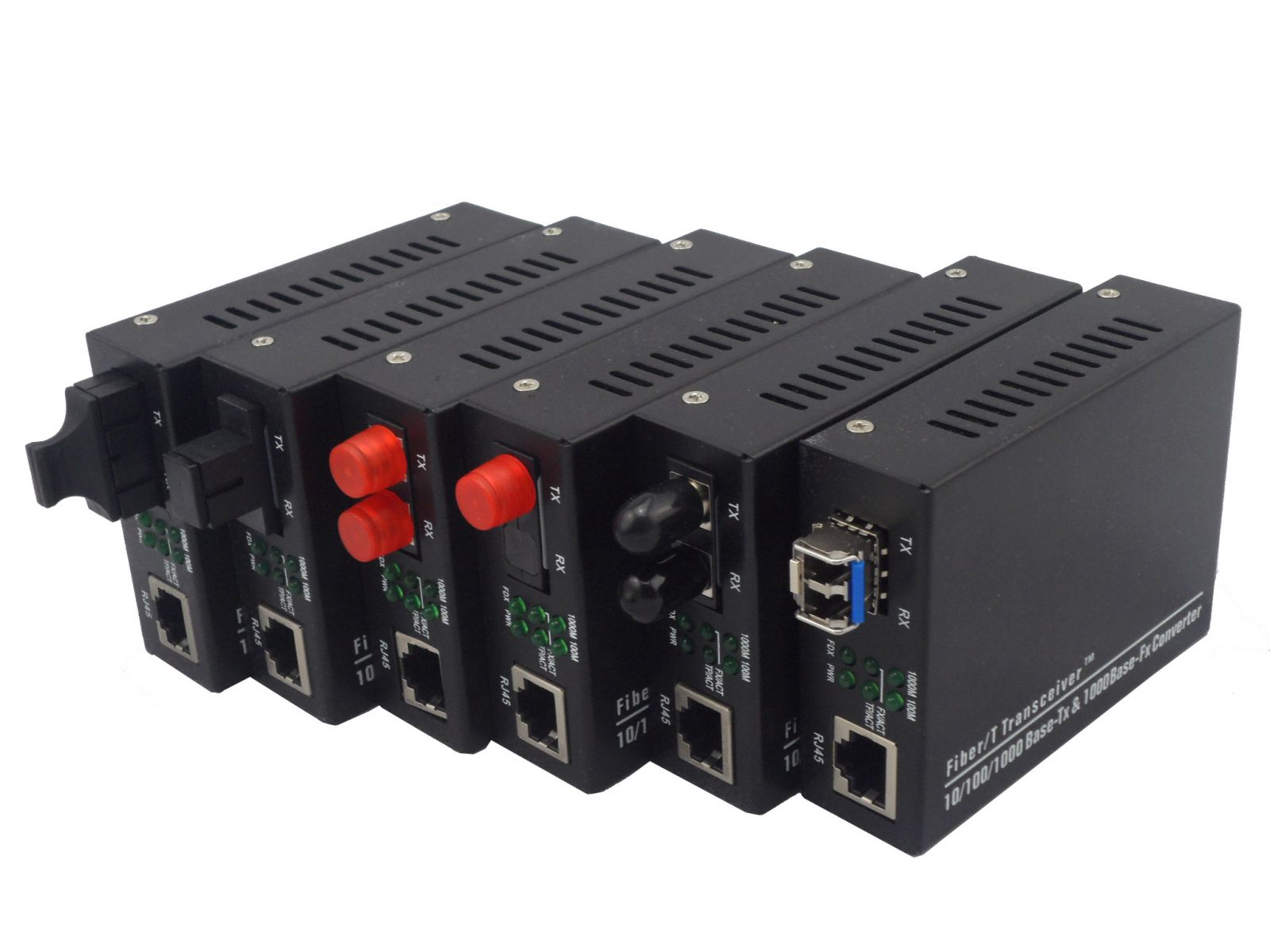

10/100/1000 Mbps Dual Fiber Media Converter

DESCRIPTION
Media Converter is 10/100/1000Mbps fast Ethernet converter. The converter mediates between a 10/100/1000Base-TX segment and a 1000Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding work groups that require expansion of the Ethernet network. It can extend the conventional 10M Ethernet or 100/1000M Fast Ethernet to 20Km-120Km via the fast Ethernet Fiber-optical Line. It is high performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.

TECHINCAL SPECIFICATIONS
Standard Protocol IEEE802.3 1000 Base-T standard
IEEE802.3u 10/100/1000Base-SX/TX standard
IEEE802.1q, IEEE802.1p QoS
IEEE802.1d Spanning Tree
IEEE 802.3z standard.
IEEE 802.3ab standard.
Band Width RJ 45 Port: 10/100/1000Mbps Optical Port: 1.25Gbps
Operation Mode Full /Half duplex mode
Connectors UTP: RJ-45 Fiber connector: SC/ST/FC/LC
Operation Mode Full /Half duplex mode
LED Indicators POWER, FPL,10/100, FRX, TRX , FDX.
Power Supply External 5V DC 2A
Internal AC110-250V/50Hz
DC -32~-72V
Power Consumption ≤5W
Environmental Parameters Work Temperature 0℃~50℃ (32 °F ~ 122 °F )
Storage Temperature -40℃~70℃ (-40 °F ~ 158 °F )
Humidity 5%~90% non-condensing
TP Cable Cat5 UTP cable (the max distance up to 100m)
Fiber Cable 8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km)
50/125, 62. 5/125μm(the max distance up to 2km or 5km)
MTBF (Hours) >50000
Dimensions(mm) External power supply 94mm*70mm*25mm     (3.7 *2.8*0.98 inch)
Internal power supply 140mm*110mm*30mm   (5.5 *4.3 *1.2 inch)
Socket Card 157mm*128mm*31mm   (6.2 *5.1 *1.2 inch)
Gross Weight External power supply 0.4 kg
Internal power supply 0.8kg
Socket Card 1.0kg
Emission/Safety FCC Part 15 , Class A, RoHS and CE Mark
