Horizontal Mechanical Seal FOSC
1.Application
The Fiber Optic Splice Closure :aerial, wall-mounting application. The ambient temperature ranges from -40 ℃ to +65℃.

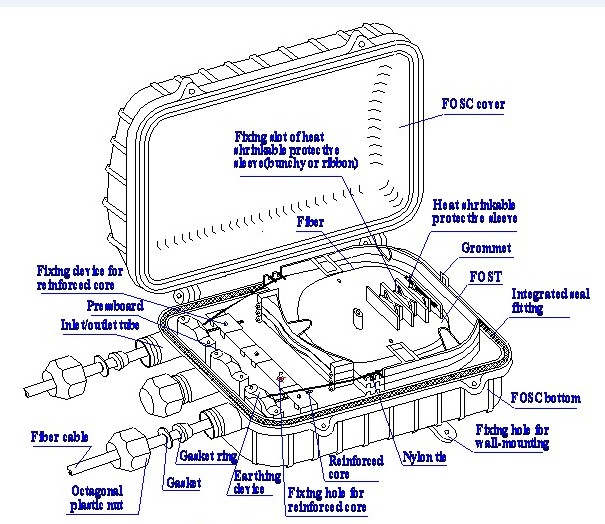

2. Basic structure and configuration
The Fiber Optic Splice Closure :aerial, wall-mounting application. The ambient temperature ranges from -40 ℃ to +65℃.
2. Basic structure and configuration
| Outside dimension (LxWxH) | 250x194x89 mm |
| Weight (excluding outside box) | 1000g-1200g |
| Number of inlet/outlet ports | Max. 3pieces |
| Diameter of fiber cable | Φ7mm—Φ12mm |
| Capacity of FOSC | Bunchy: 4-48cores |
| No. | Name of components | Quantity | Usage | Remarks |
| 1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Internal diameter: 175x122 x35(mm) |
| 2 | FOSC bottom | 1 piece | Fixing reinforced core, fiber cable and FOST | Internal diameter: 175x122 x30 (mm) |
| 3 | Fiber optic splice tray (FOST) |
Max. 4 pieces (bunchy) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy: 4-8,6-12 (cores) |
| 4 | Integrated seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | 3pcs small internal diameter Ø9.5mm seal rings;1pc housing seal fitting |
| 5 | Plastic gasket | 1 set | Protect elastic seal fitting from rotten and white ant | 3pcs internal diameter Ø12.5mm |
| 6 | Earthing deriving device | 1 set | Deriving metallic components of fiber cable in FOSC for earthing connection. | Configuration as per requirement. |
