Fiber Optic Splice Closure

Horizontal Fiber Optic Splice Closure

The Fiber Optic Splice Closure : aerial and wall-mounting. The ambient temperature ranges from -40 to 65℃.

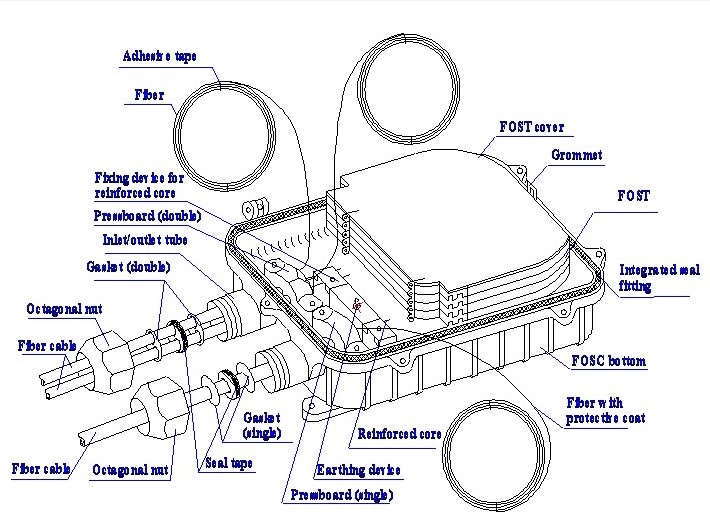

2. Basic structure and configuration
Outside dimension (LxWxH) 280x200x90 (mm)
Weight (excluding outside box) 1200g-1500g
Number of inlet/outlet ports max. 4 pieces
Diameter of fiber cable Φ8—Φ14 (mm)
Capacity of FOSC Bunchy: 6—96 (Cores)
No. Name of components Quantity Usage Remarks
1 FOSC cover 1 piece Protecting fiber cable splices in whole Internal diameter:
205x146 (mm)
2 FOSC bottom 1 piece Fixing reinforced core, fiber cable and FOST Internal diameter:
205x146 (mm)
3 Fiber optic splice tray
max. 4 pieces (bunchy) Fixing heat shrinkable protective sleeve and holding fibers Suitable for:
4 Integrated seal fitting 1 set Sealing between FOSC cover and FOSC bottom
5 Port plug 2 pieces Sealing empty ports
6 Earthing deriving device 1 set Deriving metallic components of fiber cable in FOSC for earthing connection. Configuation as per requirement.
