10 Gb/s 40Km SFP Optical Transceiver

Product Features
Duplex LC Connector
Support hot-pluggable
Metal with lower EMI
Excellent ESD protection
RoHS Compliant and Lead-Free
Compliant with IEEE 802.3ae
ITU-T G.959,G.691 compliant
Temperature-stabilized EML transmitter and PIN ROSA
Up to 40KM for single mode fiber
GR-253-CORE compliant
Compliant with SFP+ MSA: SFF-8431 Rev4.1
Digital diagnostic compatible with SFF-8472 Rev11.0
Single 3.3V power supply and Low power dissipation <2.5W

10GBASE-ER/EW 10G Etherne
10G Fibre Channel
SONET OC-192 /SDH STM-64Other Optical Link

Digital Diagnostic Monitoring Interface
Five transceiver parameter values are monitored. The following table defines the monitored parameter’s accuracy
Parameter Range Accuracy Calibration
Temperature 0 to +70°C (C) ±3°C Internal
Voltage 2.97 to 3.63V ±3% Internal
Bias Current 0 to 100mA ±10% Internal
TX Power -1 to +3dBm ±2dB Internal
RX Power -18 to 0.5dBm ±2dB Internal

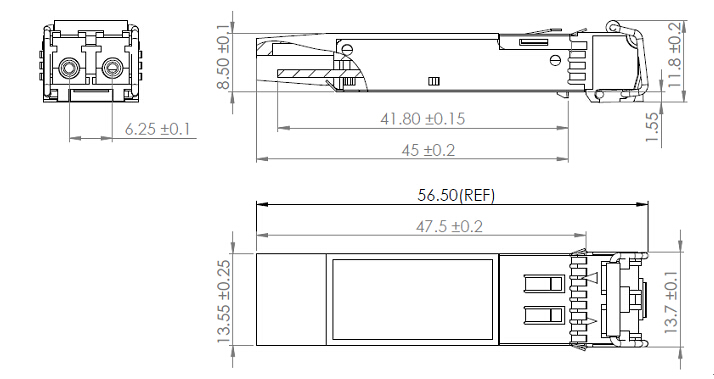

Mechanical Specifications
CABLETO's  Small Form Factor Pluggable (SFP+) transceivers are compatible with the dimensions defined by the SFP Multi-Sourcing Agreement (MSA)
