GYFTY

Description

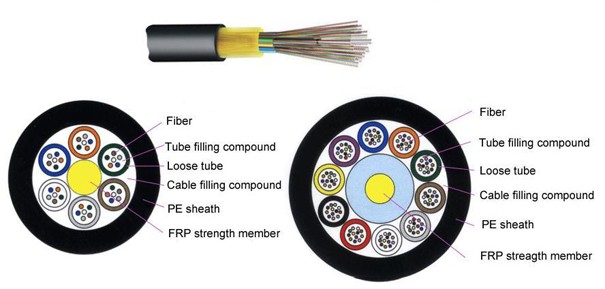

The fibers,  250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Single Fiber Reinforced Plastic as the central strength member
L100% cable core filling
Storage/Operating Temperature : -40℃ to + 60℃



Cable Parameters：
Fiber Count Cable Dimension
（mm）		 Cable Weight
（kg/km）		 Tensile
（N）		 Crush
（N/100mm）		 Min. Bend Radius
（mm）		 Range of Temperature
（℃）
Long Term Short Term Long Term Short Term Dynamic Static
2-24 9.6 66 600 1500 300 1000 20D 10D -40～+60
26-36 9.6 87 600 1500 300 1000
38-60 10.9 89 600 1500 300 1000
62-72 11.6 118 600 1500 300 1000
74-96 13.2 143 600 1500 300 1000
98-120 14.7 175 600 1500 300 1000
122-144 16.2 208 600 1500 300 1000
Note:
1 All the values in the table, which are for reference only, are subject to change without notice;
2 The minimum bend radius (static) is 5H when G657 fiber is used.

Options
Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests
