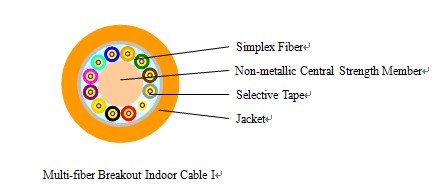

Multi-fiber Breakout Indoor Cable

Applications
Used in indoor cabling, especially used as breakout cable;
Used as access building cable;
Used as interconnect lines of equipments, and used in optical connections in optical communication equipment rooms and distribution frames;
Used in pigtails and patch cords.

Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics meet the requirements of relevant standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.



Cable Parameters
Fiber Count Cable Dimension
（mm）		 Cable Weight
（kg/km）		 Tensile
（N）		 Crush
（N/100mm）		 Min. Bend Radius
（mm）		 Range of Temperature
（℃）
Long Term Short Term Long Term Short Term Dynamic Static
4 7.0 43.5 150 400 300 1000 20D 10D -20～+60
6 8.2 57 200 500 300 1000
8 9.8 91 300 600 300 1000
12 12.5 145 400 800 300 1000
16 13.3 120 500 1500 300 1000
24 15.5 178 800 2200 300 1000
36 17.5 200 1000 3000 300 1000
48 20.0 247 1500 4000 300 1000
Note:
1. All the values provided in the table, which are for your reference, are subject to change without notice;
2. The cable dimension and weight are in accordance with tight-buffered fiber withφ0.9mm outer diameter;
3. D is outer diameter of the round cable;
4. The minimum bend radius (static) is 5D when G.657 fiber is used.
