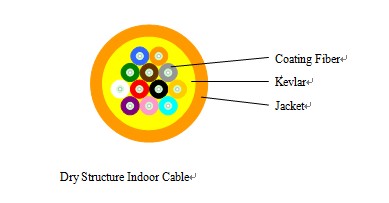

Dry Structure Indoor Cable
Application
Used in indoor cabling;
Used as access building cable;
Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distribution frames;
Used in pigtails and patch cords.
Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.
![](/upload/images/NL2631F%7EJYIHK1XY%24UM7QA9.jpg)
Cable Parameters
Used in indoor cabling;
Used as access building cable;
Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distribution frames;
Used in pigtails and patch cords.
Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.
![](/upload/images/NL2631F%7EJYIHK1XY%24UM7QA9.jpg)
Cable Parameters
Fiber Count | Cable dimension (mm) |
Cable Weight (kg/km) |
Tensile (N) |
Crush (N/100mm) |
Min. Bend Radius (mm) |
Range of Temperature (℃) |
|||
250μm Coating Layer |
250μm Coating Layer |
Long Term | Short Term | Long Term | Short Term |
Dynamic | Static | ||
1 | 2.0 | 3.5 | 40 | 80 | 50 | 100 | 20D |
10D |
-20~+60 |
2 | 2.4 | 5.0 | 50 | 100 | 50 | 100 | |||
4 | 2.4 | 5.2 | 50 | 100 | 50 | 100 | |||
6 | 2.8 | 7.2 | 60 | 120 | 50 | 100 | |||
8 | 2.8 | 7.4 | 60 | 120 | 50 | 100 | |||
12 | 3.0 | 8.2 | 60 | 120 | 50 | 100 | |||
24 | 3.8 | 9 | 60 | 120 | 50 | 100 | |||
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable core use the coating fiber of 250μm or 450μm; 3. The minimum bend radius (static) is 15mm, when G657 fiber is used. |
