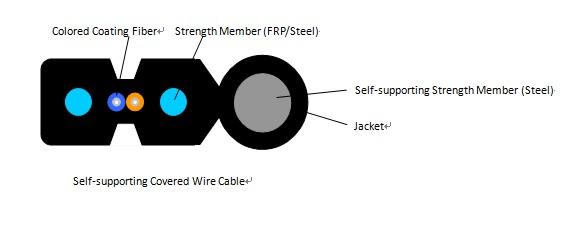

Self-supporting Covered Wire Cable

Description
Used in access network or as access cable from outdoor to indoor in customer premises network;
Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.

Characteristics
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.


Cable Parameters

Cable Count Cable Dimension
（mm）		 Cable Weight
（kg/km）		 Tensile
（N）		 Crush
（N/100mm）		 Min. Bend Radius
（mm）		 Range of Temperature
（℃）

Long Term Short Term Long Term Short Term Dynamic Static
1～2 5.0×2.0 17.7 300 600 1100 2200 20H 10 H -20～+60
Note:
1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable core use the colored coating fiber of 250μm;
3.H is height of the flat cable;
4. The minimum bend radius (static) is 5H when G657 fiber is used.

Options
Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
Jacket Material: Environmental flame-retardant polyvinyl chloride (PVC), environmental low smoke zero halogen flame retardant polyolefin (LSZH), or other contracted material;
Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.
